The ORPHEUS mini cam is an ideal ROV/diver camera, or for aquaculture monitoring, dredge operations and aquatic inspections. Constructed with a rugged anodized aluminium housing and rated to 300m depth, the Orpheus is designed for professional use in harsh environments. The Orpheus can be viewed on any laptop, NVR, TV, monitor or vessel plotter (MFD) and can record data overlays when used with the HELM app.
Orpheus Subsea Camera
$4,900.00
Skip to product information
Orpheus Subsea Camera
$4,900.00
Price ex GST, Australian customers charged 10% GST at checkout
Product Description
Features
- Full HD 1080P(50FPS) camera
- 300m depth rated, rugged anodized aluminium housing
- Fixed focus 80 degree field-of-view lens, or optional 140 degree super wide lens
- BlueTrail Engineering connectors
- Viewed on any laptop/PC
- Available from 1-150m cable lengths
- Made in Australia, supported worldwide
Specifications
PHYSICAL
- Dimensions: 165mm (L) x 65mm (W)
- Weight: in air, 0.7kg; in water, 0.4kg
- Material: Anodized 6061 aluminium, acrylic lens, 316SS hardware
- Rated Depth: 300m/984(ft)
VIDEO
- Resolution: Full HD 1080P
- Frames per second: 1-50 (1080P)
- Min. illumination: 0.001 lux
- Lens: Fixed focus 80 degree field-of-view, or optional 140 degree super wide lens
- Latency: <200 ms
- View on: Laptop, NVR, TV, monitor or vessel plotter
- Data overlay: RTSP feed can be viewed/recorded in our HELM app for data overlay
- Video format: RTSP, TCP via ethernet (or PLC HomePlug AV)
POWER
- Power in: nominal 12V (8-24V)
- Consumption: 4W
TETHER

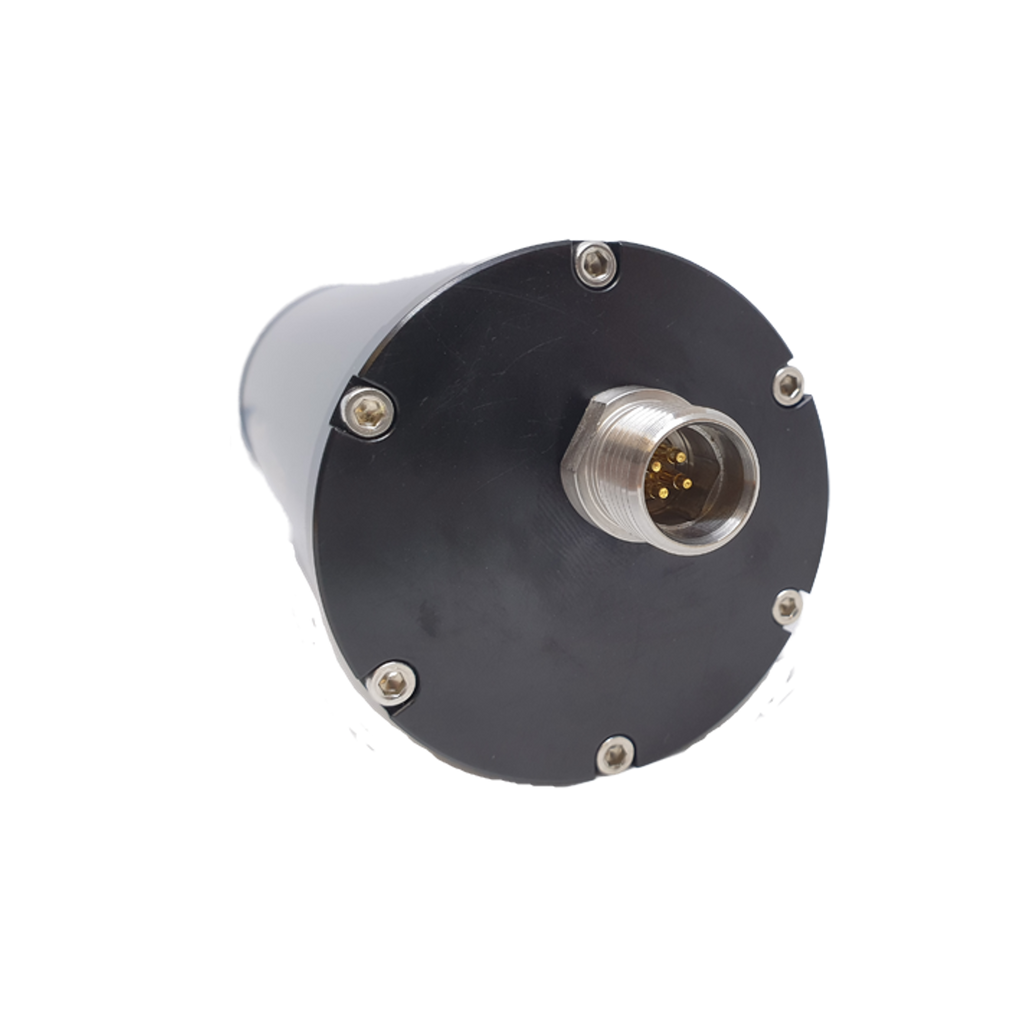

- Connector: BlueTrail Engineering or Micro Circular
- Cable outer: 1.5mm polyurethane
- Conductors: tinned copper, stranded
- Strength member: Kevlar braid (250-500kg breaking strain)
- Waterblocking: Yes
- Cable OD: 6.5-9.5mm depending on requirements
SUPPORT
Made in Australia, with 1 year warranty/service and parts held locally
Included
- Orpheus camera/housing assembly
- BlueTrail Engineering compatible bulkhead and cable
- Topside power/comms box
